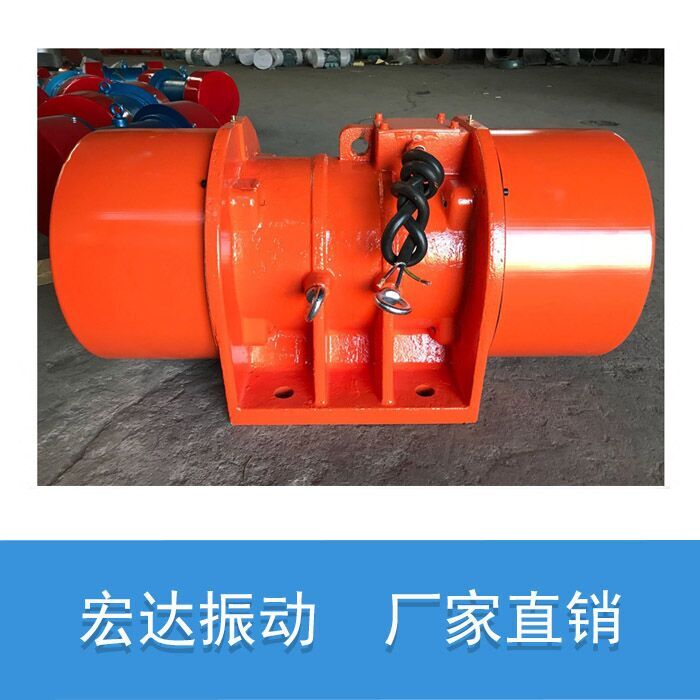

MVE振動電機相關技術參數：
額定電壓： 380V(三相)220V（單相）（也可提供230/400V，230/460V）
直流電壓： 12V 24V 220V
額定頻率： 50HZ（也可提供60HZ）
絕緣等級： F級
防護等級： IP55
工作制： 連續（S1）
激振力調整范圍： 0—最大額定
激振力： 單相 0—800kg
|
型號 |
激振力 |
振次 |
功率 |
電流 |
安裝尺寸 |
||
|
KN |
r/min |
KW |
A |
A |
B |
Φg |
|
|
MVE60/3 |
0.7 |
2900 |
0.07 |
0.16 |
62-74 |
106 |
Φ9 |
|
MVE100/3 |
1 |
0.09 |
0.19 |
62-74 |
106 |
Φ9 |
|
|
MVE200/3 |
2 |
0.15 |
0.35 |
62-74 |
106 |
Φ9 |
|
|
MVE300/3 |
3 |
0.25 |
0.52 |
90 |
125 |
Φ13 |
|
|
MVE400/3 |
4 |
0.27 |
0.58 |
60 |
125 |
Φ13 |
|
|
MVE500/3 |
5 |
0.37 |
0.96 |
105 |
140 |
Φ13 |
|
|
MVE700/3 |
7 |
0.45 |
1.25 |
105 |
140 |
Φ13 |
|
|
MVE800/3 |
8 |
0.55 |
1.45 |
120 |
170 |
Φ17 |
|
|
MVE1200/3 |
10 |
0.75 |
1.85 |
120 |
170 |
Φ17 |
|
|
MVE1300/3 |
13 |
1.1 |
2.44 |
120 |
170 |
Φ17 |
|
|
MVE1600/3 |
16 |
1.25 |
2.94 |
140 |
190 |
Φ17 |
|
|
MVE1800/3 |
18 |
1.5 |
3.75 |
140 |
190 |
Φ17 |
|
|
MVE2000/3 |
20 |
2 |
4.07 |
140 |
190 |
Φ17 |
|
|
MVE2300/3 |
23 |
2 |
4.44 |
140 |
190 |
Φ17 |
|
|
MVE3200/3 |
32 |
2.2 |
5.3 |
155 |
255 |
Φ25 |
|
|
MVE4000/3 |
40 |
2.7 |
5.3 |
155 |
255 |
Φ25 |
|
|
MVE5000/3 |
50 |
3.5 |
7.22 |
155 |
255 |
* |
|
|
MVE6500/3 |
65 |
4.2 |
8.2 |
200 |
320 |
Φ28 |
|
|
MVE9000/3 |
90 |
7.2 |
17.8 |
200 |
320 |
Φ28 |
|
|
MVE40/15 |
0.3 |
1400 |
0.31 |
0.03 |
62-74 |
106 |
Φ9 |
|
MVE90/15 |
0.9 |
0.26 |
0.07 |
62-74 |
106 |
Φ9 |
|
|
MVE200/15 |
2 |
0.49 |
0.12 |
90 |
125 |
Φ13 |
|
|
MVE250/15 |
2.5 |
0.54 |
0.13 |
90 |
125 |
Φ13 |
|
|
MVE300/15 |
3 |
0.62 |
0.14 |
90 |
125 |
Φ13 |
|
|
MVE400/15 |
4 |
0.84 |
0.15 |
105 |
140 |
Φ13 |
|
|
MVE500/15 |
5 |
1.06 |
0.25 |
105 |
140 |
Φ13 |
|
|
MVE700/15 |
7 |
1.32 |
0.37 |
120 |
170 |
Φ17 |
|
|
MVE800/15 |
8 |
1.36 |
0.4 |
120 |
170 |
Φ17 |
|
|
MVE1100/15 |
11 |
1.42 |
0.4 |
120 |
170 |
Φ17 |
|
|
MVE1400/15 |
14 |
1.78 |
0.45 |
140 |
190 |
Φ17 |
|
|
MVE1700/15 |
17 |
2.09 |
0.75 |
140 |
190 |
Φ17 |
|
|
MVE2400/15 |
24 |
3.2 |
1 |
140 |
190 |
Φ17 |
|
|
MVE2500/15 |
25 |
3.4 |
1.2 |
155 |
225 |
Φ22 |
|
|
MVE3000/15 |
30 |
3.68 |
1.5 |
155 |
225 |
Φ22 |
|
|
MVE3800/15 |
38 |
4.15 |
1.72 |
155 |
255 |
Φ25 |
|
|
MVE4300/15 |
43 |
4.5 |
1.94 |
155 |
255 |
Φ25 |
|
|
MVE5500/15 |
55 |
6.5 |
2.2 |
180 |
280 |
Φ26 |
|
|
MVE7200/15 |
72 |
9.6 |
3 |
200 |
320 |
Φ28 |
|
|
MVE9000/15 |
90 |
13.4 |
5.8 |
200 |
320 |
Φ28 |
|
|
MVE10000/15 |
100 |
14.4 |
6.3 |
125-125 |
380 |
6-Φ38 |
|
|
MVE50/1 |
0.5 |
960 |
0.12 |
0.38 |
90 |
125 |
Φ13 |
|
MVE100/1 |
1 |
0.12 |
0.42 |
90 |
125 |
Φ13 |
|
|
MVE200/1 |
1.8 |
0.15 |
0.48 |
105 |
140 |
Φ13 |
|
|
MVE300/1 |
3 |
0.25 |
0.67 |
120 |
170 |
Φ17 |
|
|
MVE400/1 |
4 |
0.25 |
0.78 |
120 |
170 |
Φ17 |
|
|
MVE500/1 |
5 |
0.37 |
1.22 |
220 |
170 |
Φ17 |
|
|
MVE800/1 |
7.8 |
0.45 |
1.26 |
140 |
190 |
Φ17 |
|
|
MVE1100/1 |
10 |
0.55 |
1.42 |
140 |
190 |
Φ17 |
|
|
MVE1400/1 |
14 |
0.7 |
1.95 |
140 |
190 |
Φ17 |
|
|
MVE1500/1 |
15 |
0.7 |
2 |
140 |
190 |
Φ17 |
|
|
MVE1600/1 |
16 |
0.75 |
2.06 |
140 |
190 |
Φ17 |
|
|
MVE1620/1 |
16 |
0.75 |
2.06 |
155 |
225 |
Φ22 |
|
|
MVE2100/1 |
21 |
1.5 |
2.88 |
155 |
255 |
Φ22 |
|
|
MVE2600/1 |
26 |
1.96 |
3.63 |
155 |
255 |
Φ23.5 |
|
|
MVE3000/1 |
30 |
2.2 |
4.17 |
155 |
255 |
Φ23.5 |
|
|
MVE3800/1 |
38 |
2.5 |
4.67 |
180 |
280 |
Φ26 |
|
|
MVE4700/1 |
47 |
2.9 |
6.01 |
180 |
280 |
Φ26 |
|
|
MVE5200/1 |
52 |
3.2 |
|||||
